STRAUB PIPE JOINING & REPAIRING SYSTEMS
STRAUB SQUARE-FLEX
Pipe Joining and Repairing Coupling
Technical Information
Casing / Locking parts
W5
Sealing
EPDM sealing gasket
Sizes
60mm / 80mm / 100mm
Temperatures
-20 °C to +100 °C
Medium
All qualities of water, waste water, air, solids and chemical products
Pipe Material
All pipe materials
STRAUB SQUARE-FLEX

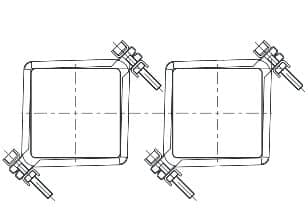

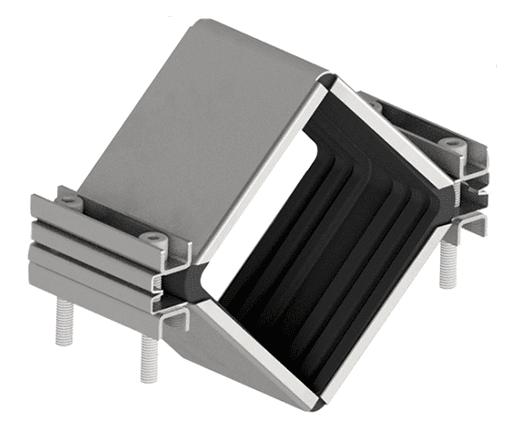

Straub connects square pipes easily, quickly and reliably with STRAUB-SQUARE-FLEX. The main application area of STRAUB-SQUARE-FLEX is piping in water treatment plants for biological waste water purification. Straub Square Flex is used on square pipes in aeration basins.
STRAUB pipe couplings designated with FLEX are axially flexible (non axial restraint)
If STRAUB-FLEX pipe couplings are used, it must be ensured that occurring axial change in each pipe section is not greater than the compensation capability of the used STRAUB-FLEX pipe coupling. A fixed point and a sliding pipe restrain are required for each pipe section.
STRAUB FLEX Pipe Joining and Repairing Couplings
Non-axial restraint type
FLEX 1,2,3,3.5,4 |
OPEN-FLEX |
REP-FLEX |
CLAMP |
|
|---|---|---|---|---|
| Diameter | 48.3mm to 4064.0mm | 48.3mm to 4064.0mm | 46.0mm to 429.00mm | 44.0mm to 420.0mm |
| Working pressure | up to 25 bar | up to 25 bar | up to 16 bar | 16 bar |
| Sealing Gaskets | EPDM, NBR, FPM/FKM | EPDM, NBR, FPM/FKM | EPDM, NBR | EPDM, NBR |
| Temperatures | -20°C to +180°C | -20°C to +180°C | -20°C to +100°C | -5°C to +40°C |
| Fireproofing possible | YES | YES | NO | NO |
| Side outlet possible | NO | YES | NO | NO |
