STRAUB PIPE JOINING & REPAIRING SYSTEMS
STRAUB PLAST-GRIP
Pipe Joining Coupling
Technical Information
Casing / Locking parts
W5, W2
Sealing
EPDM / NBR sealing gaskets
Sizes
40.0mm - 355.0mm
Temperatures
-30 °C to +100 °C
Medium
Water, air, solids and chemical products, gas, oil, fuel and other hydrocarbs
Pipe Material
Plastic to plastic pipe joining

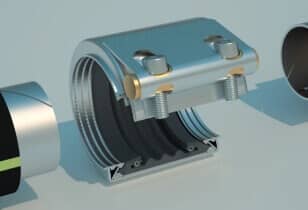

STRAUB PLAST-GRIP
STRAUB-PLAST-GRIP is the ideal combination for thick and thin-walled plastic tubes. It is used for gas and water supply applications , for industrial pipeline constructions, suction and pressure lines.
STRAUB GRIP Pipe Joining Couplings
Axially restraint type
METAL-GRIP |
GRIP-L |
ECO-GRIP |
COMBI/PLAST GRIP |
PLAST-PRO |
|
|---|---|---|---|---|---|
| Diameter | 30.0mm to 609.6mm | 26.9mm to 609.6mm | 26.9mm to 168.3mm | 40.0mm to 355.0mm | 63.0mm to 355.0mm |
| Working pressure | up to 67 bar | up to 46 bar | 6 bar | 16 bar | up to 16 bar |
| Sealing Gaskets | EPDM, NBR | EPDM, NBR, FPM/FKM | EPDM, NBR | EPDM, NBR | PIPE MATERIAL |
| Temperatures | -30°C to +100°C | -20°C to +180°C | -10°C to +40°C | -20°C to +100°C | -5°C to +40°C |
| Fireproofing possible | YES | YES | NO | NO | NO |
| Side outlet possible | YES | NO | NO | NO | NO |
