STRAUB PIPE JOINING & REPAIRING SYSTEMS
STRAUB PLAST-PRO
Pipe Joining System
Technical Information
Shell / Locking parts
W5
Liner(pipe insert)
Carbon steel, Rilsan coated(W270, NSF61, WRAS)
Sizes
63.0mm - 355.0mm
Temperatures
-5 °C to +40 °C
Medium
All qualities of water
Pipe Material
PE(polyethylene) pipes
Datasheet Fitting InstructionsSTRAUB-PLAST-PRO offers an alternative to traditional jointing methods of PE used in water, waste water, industrial plants and maintenance applications. The full product range offers the great advantage that pipes can easily be connected without the need of external power supply and pipe end preparation, even under demanding external weather conditions.The pipes made of PE 80 or PE 100 are connected with combination of liner inserts and external shells.The jointing concept allows product to be assembled easily and is difficult to get wrong.

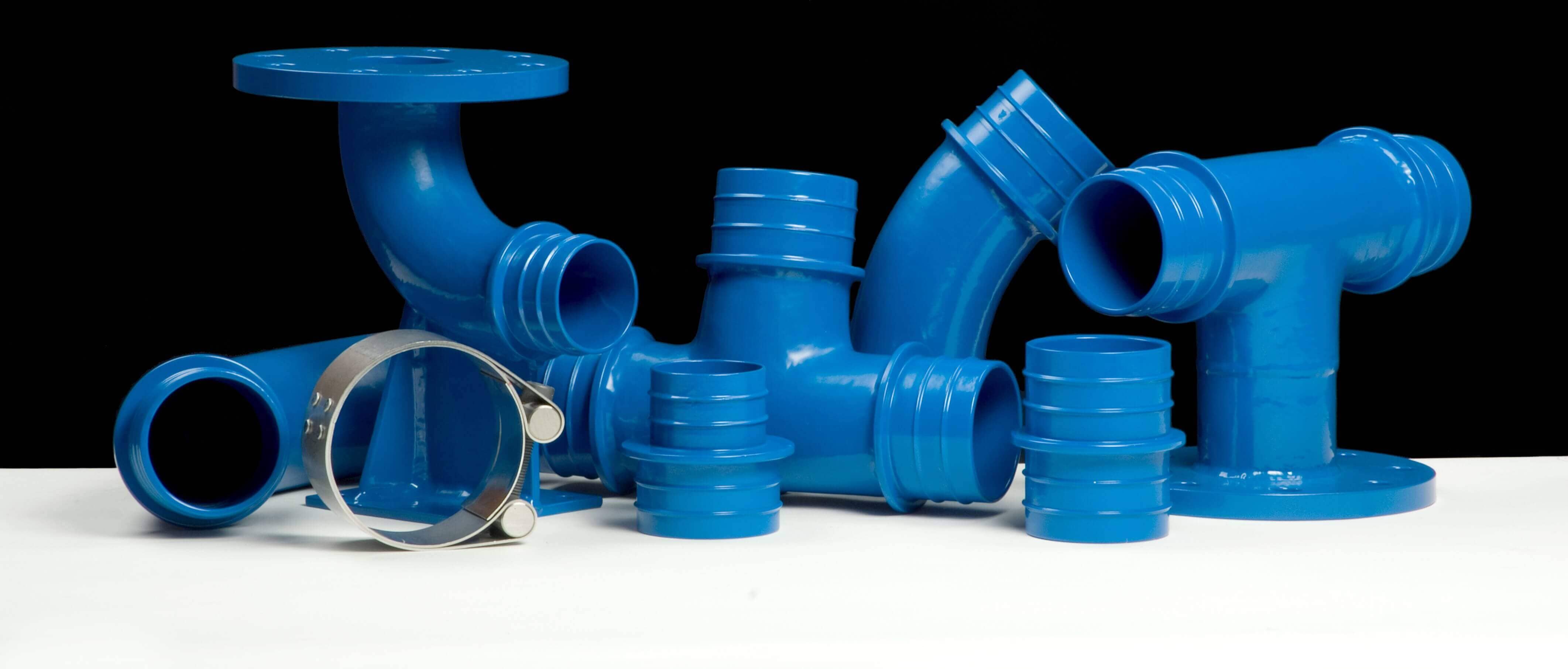

The complete kit
STRAUB-PLAST-PRO
See full range
STRAUB GRIP Pipe Joining Couplings
Axially restraint type
METAL-GRIP |
GRIP-L |
ECO-GRIP |
COMBI/PLAST GRIP |
PLAST-PRO |
|
|---|---|---|---|---|---|
| Diameter | 30.0mm to 609.6mm | 26.9mm to 609.6mm | 26.9mm to 168.3mm | 40.0mm to 355.0mm | 63.0mm to 355.0mm |
| Working pressure | up to 67 bar | up to 46 bar | 6 bar | 16 bar | up to 16 bar |
| Sealing Gaskets | EPDM, NBR | EPDM, NBR, FPM/FKM | EPDM, NBR | EPDM, NBR | PIPE MATERIAL |
| Temperatures | -30°C to +100°C | -20°C to +180°C | -10°C to +40°C | -20°C to +100°C | -5°C to +40°C |
| Fireproofing possible | YES | YES | NO | NO | NO |
| Side outlet possible | YES | NO | NO | NO | NO |
